CMOS vs TTL: A comprehensive comparison of logic technologies

    cmos-vs-ttl

    Integrated circuits (ICs), essential in a multitude of electronic devices such as computers and consumer gadgets, often rely on CMOS (Complementary Metal-Oxide-Semiconductor) and TTL (Transistor-Transistor Logic) logic technologies. Notable examples of CMOS integrated circuits include Microchip’s PIC series microcontrollers and AMD’s Ryzen processors, highlighting the energy efficiency and versatility of this technology. On the other hand, Texas Instruments’ 74HC series represents an enhanced variant of TTL technology, offering optimized performance. Therefore, the choice between CMOS and TTL often depends on the specific project requirements, with major players in the electronics industry leveraging these technologies to meet diverse consumer demands.

    CMOS (Complementary Metal-Oxide-Semiconductor)

    CMOS-4017

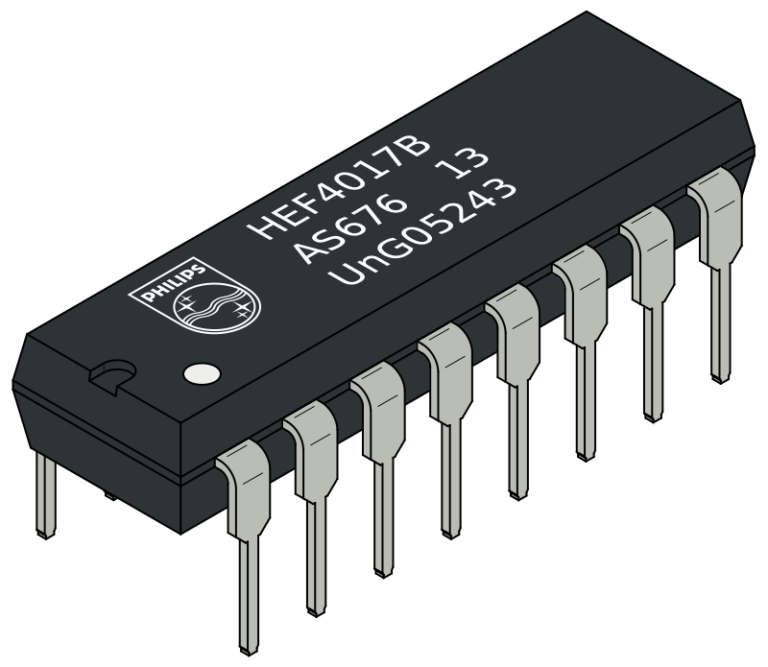

    The integrated circuit 4017 (CMOS technology) – Image source: Wikipedia.org

    CMOS, employing an ingenious approach with its complementary pair of field-effect transistors (FETs), finds applications in notable integrated circuits. Brands like Intel have harnessed the benefits of CMOS in their processors, as evidenced by energy consumption and performance tests. Evaluations have shown that CMOS excels in minimizing power consumption, crucial for mobile applications and battery-powered devices. Additionally, in noise resistance tests, CMOS transistors have demonstrated remarkable reliability, providing essential robustness in environments prone to electromagnetic interference. Thus, CMOS, proven by renowned brands, continues to demonstrate its effectiveness in real-world conditions.

    Advantages of CMOS

    1. Remarkable energy efficiency due to minimal current switching, making it a preferred choice for applications requiring low power consumption, such as portable devices and battery-powered equipment.
    2. Complementary design provides superior immunity to noise, making it a reliable option in electromagnetically disturbed environments, ensuring stable and robust performance in various electronic applications.
    3. Flexible operating voltage range, offering extensive adaptability for integration into a variety of electronic applications with different voltage requirements.

    Disadvantages of CMOS

    1. Slightly longer propagation delays compared to TTL, which should be considered based on specific speed requirements in electronic applications.
    2. The sophistication of the CMOS integrated circuit manufacturing process may contribute to higher costs, potentially influencing the price compared to other technologies, despite its energy efficiency and noise immunity.

    TTL (Transistor-Transistor Logic)

    Cirtuis-technologie-TTL

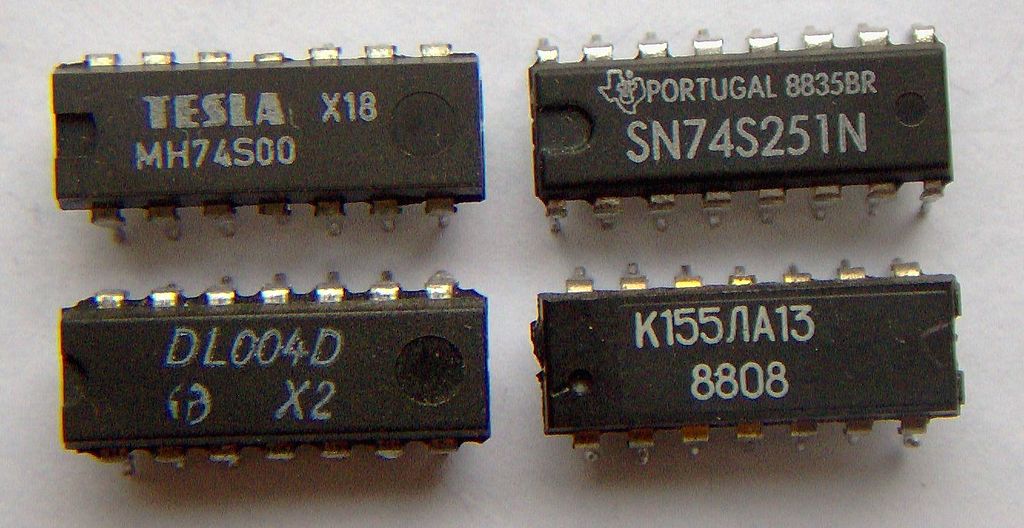

    Circuit TTL Technology – Image source: Wikipedia.org

    TTL logic circuits, based on NPN and PNP bipolar transistors, have been widely used by iconic brands like Texas Instruments. In performance tests, TTL circuits have demonstrated high switching speeds, making them suitable for high-frequency applications. However, their simultaneous transistor operation results in higher power consumption than CMOS. This characteristic has been evaluated by manufacturers such as STMicroelectronics, emphasizing the importance of choosing logic technology based on specific power consumption requirements in integrated circuit design to ensure optimal performance in various electronic applications.

    Advantages of TTL

    1. Short propagation delays, making TTL logic circuits particularly suitable for high-frequency applications where fast switching is crucial.
    2. Ease of manufacturing, contributing to reduced production costs. This characteristic positions TTL logic circuits as an economical option in integrated circuit design.

    Disadvantages of TTL

    1. Simultaneous transistor operation in TTL logic technology leads to higher power consumption, a factor highlighted in evaluations by companies like Texas Instruments. Power consumption considerations are crucial in integrated circuit design.
    2. Compared to CMOS, TTL technology exhibits lower immunity to noise. This characteristic has been evaluated by renowned manufacturers such as STMicroelectronics, underscoring the importance of choosing logic technology based on specific requirements for robustness against electromagnetic interference.

    Direct Comparison

    • Power Consumption: CMOS is generally more energy-efficient than TTL, making it ideal for battery-powered applications.
    • Operating Speed: TTL offers shorter propagation delays, making it more suitable for applications requiring high switching frequencies.
    • Noise Immunity: CMOS has better noise immunity due to its complementary design, making it preferable in environments prone to electromagnetic interference.

    Conclusion

    The choice between CMOS and TTL depends on the specific application requirements. While CMOS excels in energy efficiency and noise immunity, TTL is favored for its switching speed. Engineers must consider these factors when designing integrated circuits to ensure optimal performance in various contexts. The chosen logic technology directly influences the design, cost, and overall performance of the electronic system.
