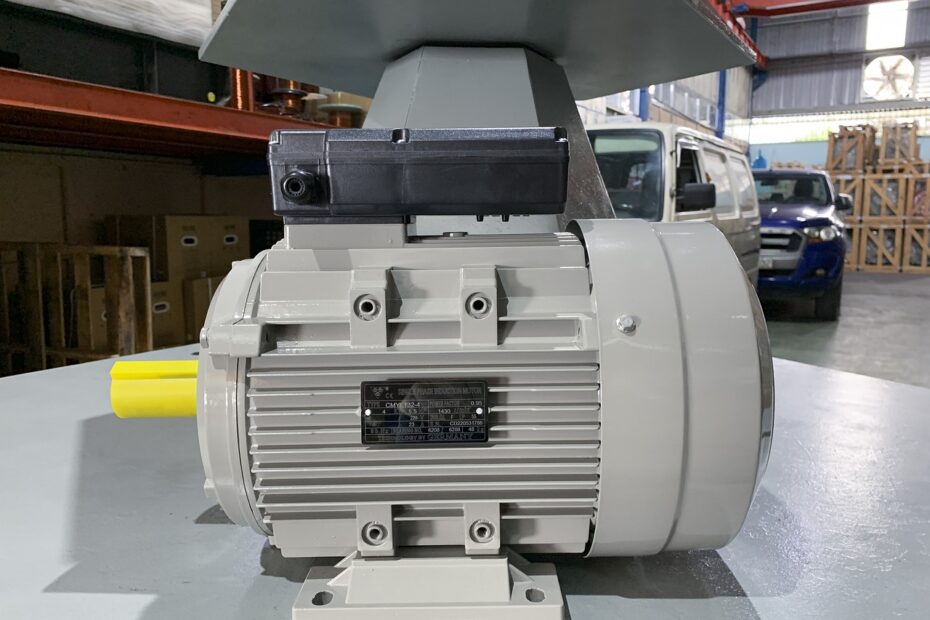

Testing a three-phase asynchronous motor for faults or damage


    Three-phase asynchronous motors are essential components in various industrial and commercial applications. To ensure the smooth operation of these motors, regular testing and maintenance are crucial. This tutorial will guide you through the process of testing a three-phase asynchronous motor to identify potential faults or damage. Proper testing will help prevent breakdowns, extend the motor’s lifespan, and maintain optimal performance.

    Tools and equipment eended

    1.  Multimeter
    2.  Phase rotation tester (optional)
    3.  Insulation resistance tester (megger)
    4.  Clamp ammeter (optional)
    5.  Screwdrivers and wrenches
    6.  Safety gear (gloves, safety goggles, and insulated shoes)
    7.  A checklist of motor specifications and manufacturer guidelines

    Safety precautions

    .  Always disconnect the power supply to the motor and lock out the circuit before testing.
    .  Wear appropriate personal protective equipment to prevent electrical hazards.
    .  Familiarize yourself with the motor’s specifications and manufacturer guidelines.

    Testing procedure

    1.  Visual inspection

    Begin by inspecting the motor visually for any obvious signs of damage, such as loose or burnt wires, excessive heat, or physical damage. If you notice any issues, address them before proceeding.

    2.  Electrical continuity test

    a. Use a multimeter to check the continuity of the motor windings. Ensure the power is disconnected.

    b. Measure the resistance between each phase (U, V, and W) and the motor frame. There should be infinite resistance, indicating no continuity, to prevent ground faults.

    3.  Phase rotation test (Optional)

    a. If you have a phase rotation tester, use it to confirm the correct phase sequence (RST) of the motor’s terminals. Incorrect phase sequence can lead to motor damage or inefficiency.

    b. Correct the phase sequence if necessary.

    4.  Insulation resistance test

    a. Use an insulation resistance tester (megger) to measure the insulation resistance of the motor windings.

    b. Follow the manufacturer’s guidelines for the test voltage and minimum acceptable resistance values.

    c. A low insulation resistance reading may indicate moisture ingress or damaged insulation.

    5. Voltage and current testing

    a. Reconnect the motor to the power supply.

    b. Use a clamp ammeter to measure the current in each phase. Compare the readings to the motor’s rated current.

    c. Use a multimeter to measure the voltage across each phase. Ensure it matches the rated voltage.

    d. Imbalanced current or voltage can signify issues with the motor or power supply.

    6. No-load test

    Even perform a hands-on ‘no-load’ test to check for mechanical obstacles, such as damaged bearings, and listen for any unusual sounds.

    7.  Load testing

    a. Gradually apply a load to the motor and observe its performance. The motor should start smoothly, run without unusual noise, and handle the load as expected.

    b. Ensure the motor doesn’t overheat during the test. Overheating can indicate issues with bearings or insufficient cooling.

    8.  Vibration analysis (optional)

    a. If available, use a vibration analysis tool to assess the motor’s vibration levels. Excessive vibration may suggest misalignment, bearing issues, or rotor imbalance.

    9.  Record and compare data

    a. Document all your measurements and observations.

    b. Compare the collected data with the motor’s specifications and historical data, if available. Deviations from the norm may indicate a problem.

    10.  Maintenance and repair

    Based on the test results, perform any necessary maintenance or repairs. This may include cleaning, re-tightening connections, replacing damaged components, or rewinding the motor.

    11.  Final inspection

    After repairs and maintenance, perform a final visual inspection to ensure that all issues have been resolved.


    Testing a three-phase asynchronous motor for faults or damage is essential for ensuring its reliable operation. Regular maintenance and testing can help prevent costly breakdowns and extend the motor’s lifespan. By following the steps in this tutorial and adhering to safety precautions, you can effectively identify and address any issues that may affect the motor’s performance.
