Understanding the role of a capacitor in single-phase motors

single-phase motor

Single-phase motors are widely used in various applications, including household appliances, pumps, fans, and more. One critical component in many single-phase motors is the capacitor. In this tutorial, we will explain the role of a capacitor in a single-phase motor and discuss whether it is possible to replace a defective capacitor with one of similar or dissimilar capacitance and the potential consequences.

The role of a capacitor in a single-phase motor

A capacitor plays a crucial role in single-phase motors, especially in those known as split-phase or capacitor-start motors. Its main functions include:

  • Phase shift: The capacitor creates a phase shift between the start and run windings of the motor. This phase shift provides the necessary torque to start the motor rotating and ensures smooth operation.
  • Improved starting torque: The capacitor helps increase the starting torque, allowing the motor to overcome initial resistance and start smoothly.
  • Continuous operation: After the motor starts, the capacitor may continue to assist in maintaining the motor’s performance by providing additional phase shift and improving efficiency.

Identifying signs of a defective capacitor in a single-phase motor

Identifying a defective capacitor in a single-phase motor is crucial for ensuring the motor’s continued reliable operation. There are a few common signs and methods to help you determine if a capacitor is faulty.

  • Motor struggles to start: When a capacitor is failing or has failed, the motor may have difficulty starting. It might make a humming sound, vibrate excessively, or not start at all. This is a clear indicator that the capacitor’s role in providing the necessary starting torque has been compromised.
  • Overheating: If a motor gets excessively hot during operation, it could be a sign of a failing capacitor. Capacitors that are not functioning correctly can cause the motor to draw more current than it should, resulting in overheating.
  • Physical inspection: In some cases, a defective capacitor may exhibit visible signs of failure, such as bulging or leaking electrolyte. However, not all faulty capacitors display external damage, so it’s essential to combine this observation with the motor’s performance.
  • Capacitance testing: To confirm whether a capacitor is indeed defective, you can use a capacitance meter or multimeter. Measure the capacitance of the capacitor and compare it to its rated value. If it falls significantly outside the acceptable tolerance range, the capacitor may need replacement.
  • Replacement testing: In some cases, simply replacing the capacitor with a known working one can be a diagnostic step. If the motor starts and operates correctly with a new capacitor, it’s a strong indication that the original capacitor was the issue.

It’s essential to address a defective capacitor promptly to prevent further motor damage and ensure the motor’s reliable operation. Always exercise caution and, if you’re unsure about the diagnosis or replacement, seek assistance from a qualified technician or electrician.

Safety precautions for handling capacitors and mitigating electrical shock risks

When handling a capacitor, it’s essential to take several precautions to ensure your safety, primarily due to the risk of electrical shock from the potential charge stored between its terminals. Before touching a capacitor, always ensure it is safely discharged by short-circuiting the terminals with a resistor or insulated tool. Additionally, be aware of the capacitor’s voltage rating, and never exceed it to prevent potential damage and safety hazards. Always use appropriate personal protective equipment, such as insulated gloves and eye protection, when working with capacitors, and follow manufacturer guidelines for safe handling and disposal. Capacitors can store electrical energy even when disconnected from the power source, so exercising caution is crucial to avoid any electrical mishaps.

Replacing a defective capacitor

When a capacitor in a single-phase motor becomes defective, it is essential to replace it to maintain the motor’s functionality. However, the question arises: can you replace it with a capacitor of similar or dissimilar capacitance?

Replacing with a Capacitor of Similar Capacitance

If the defective capacitor is replaced with one of similar capacitance (in microfarads, µF), it is usually the safest option. The motor should continue to operate as intended, as long as the new capacitor is within a reasonable tolerance of the original value (typically within 10-20%).

Replacing with a Capacitor of Dissimilar Capacitance

Replacing a defective capacitor with one of significantly different capacitance can have consequences:

  • Smaller capacitance: If you use a capacitor with lower capacitance, the motor’s starting torque may be reduced, and it might struggle to start or stall under load.
  • Larger capacitance: A capacitor with higher capacitance can cause the motor to draw excessive current, which may lead to overheating, reduced motor lifespan, and potential damage.

Considerations when Replacing a Capacitor

When replacing a defective capacitor, it is essential to consider the following:

  • Match the voltage rating: Ensure the replacement capacitor has the same or higher voltage rating as the original to prevent voltage-related issues.
  • Check tolerance: Confirm the tolerance of the replacement capacitor to ensure it falls within an acceptable range of the original value.
  • Consult manufacturer data: If possible, refer to the motor manufacturer’s specifications for the recommended capacitor values and tolerances.
  • Seek professional advice: If you are uncertain about which capacitor to use or if the motor is critical to your application, consult a qualified technician or electrician for guidance.


In summary, capacitors play a vital role in single-phase motors, helping with starting torque and phase shift. When replacing a defective capacitor, it is safest to choose one with a similar capacitance, ensuring it meets voltage and tolerance requirements. Replacing it with a capacitor of significantly different capacitance can lead to undesirable consequences, affecting motor performance and potentially causing damage. Always exercise caution and, when in doubt, seek professional advice for the best replacement options.

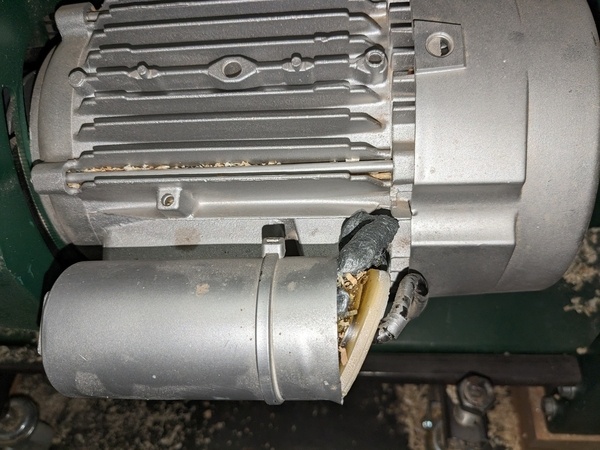

Source image : lairdubois.frCreative Commons
