Control your motor: Meet the 555 speed controller

555 DC Motor Speed Controller

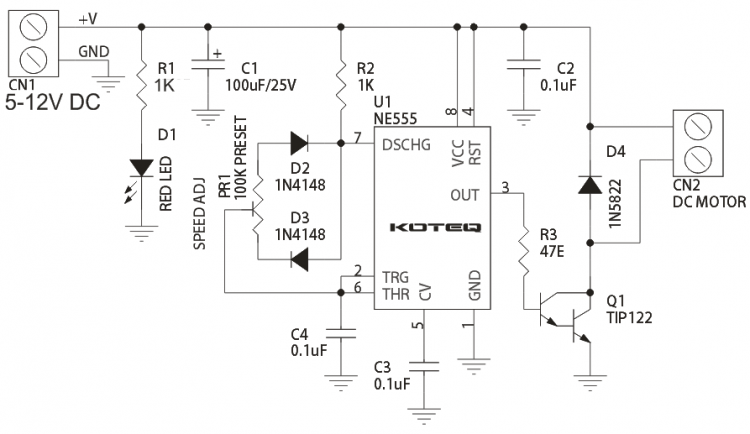

The 555 DC Motor Speed Controller project is a versatile and efficient device designed to regulate the speed of a connected DC motor. Constructed around the widely used 555 timer IC, this project offers a reliable solution for various applications. It operates within a power supply input range of 5-12V, making it adaptable to different voltage requirements. The controller can handle DC motor loads of up to 1 to 2 amps, catering to a diverse range of motor types. Equipped with an onboard preset, users can easily vary the duty cycle from 10% to 95% at a frequency of 120 Hz, providing precise control over the motor speed. This feature makes the 555 DC Motor Speed Controller particularly suitable for applications such as mini drills and robotics. The output drive is transistor-based and includes a heat sink for effective thermal management. Additionally, diode protection is implemented to safeguard the motor from surge currents. The inclusion of a Power-On LED indicator enhances user convenience, allowing quick visual confirmation of the controller’s operational status. The screw terminal connectors facilitate easy and secure power supply input and motor connections. With four mounting holes of 3.2 mm each, the PCB (Printed Circuit Board) dimensions of 47 mm x 56 mm provide a compact and efficient form factor, ensuring easy integration into diverse projects. Overall, the 555 DC Motor Speed Controller project combines robust design with user-friendly features, making it a valuable component for motor speed regulation in various electronic applications.

Exploring the technical prowess of the NE555 integrated circuit

The NE555 integrated circuit, a renowned and widely-used component in electronics, boasts a range of technical features that contribute to its popularity. Operating as a versatile timer and pulse-width modulation (PWM) controller, the NE555 is designed to provide precision timing and frequency generation. Its flexibility is evident in its ability to operate in various modes, including monostable, astable, and bistable configurations. With a supply voltage range typically spanning from 4.5 to 15 volts, the NE555 accommodates diverse applications. It incorporates an adjustable duty cycle and timing capability, allowing users to tailor its performance to specific needs. The NE555’s output can source or sink up to 200 mA, making it suitable for driving a variety of loads. Moreover, it features a low reset input current and a high output current, enhancing its compatibility with other components. With a stable operation over a broad temperature range and widespread availability, the NE555 remains a cornerstone in electronics, serving as an indispensable tool for circuit designers and hobbyists alike.

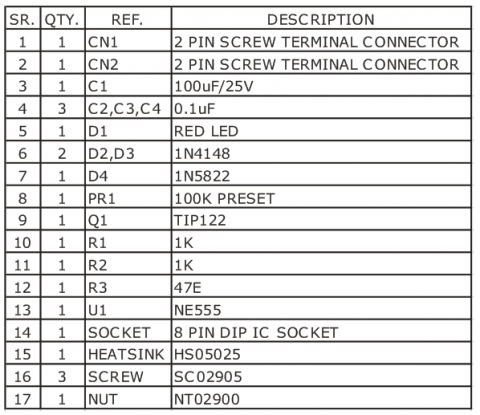

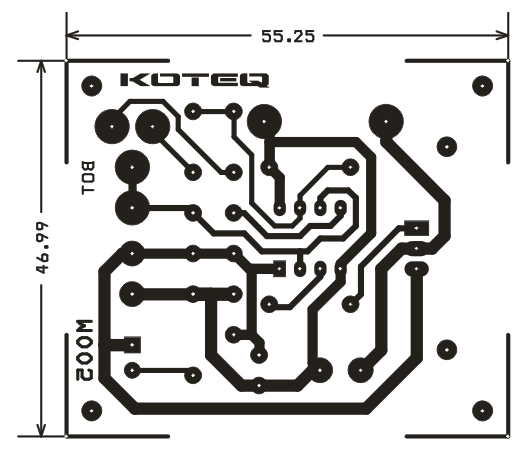

Parts list





Source : (CC BY-SA 4.0)
