Innovative 10-speed motor control with LED indication

    AC-MOTOR-CONTROLLER-USING-LS7311

    Revolutionizing appliance design: Innovative motor speed control project with 10-speed selection and LED indication

    The project at hand has been meticulously crafted with a specific focus on motor speed control applications within household appliances, including but not limited to blenders. It incorporates a user-friendly interface, featuring 10 tact switches for seamlessly selecting and indicating the desired power level or speed. These speed levels, indicated by 10 LEDs, provide the perfect solution for universal and shaded-pole motor speed control in modern appliance design. The project’s significance lies in its ability to eliminate the cumbersome mechanical switch assemblies and the need for multi-taped motor winding, streamlining the control process. Notable features include the presence of 10 tact switches for speed selection, an array of 10 LEDs for clear speed indication, on-board stop and start switches with a latch operation for the start switch, and a momentary run switch. It operates efficiently with a power supply of 230V (although 110V is possible with the appropriate component change, as detailed in the data sheet), accommodating a load of up to 300W. The inclusion of an on-board snubber for inductive loads ensures smooth operation without the requirement for a separate DC power supply, making it an optimal choice for motor speed control applications in various appliances.

    CAUTION:  This project involves hazardous 220V AC voltages. Please implement necessary safety precautions.

    The versatile LS7311 integrated circuit: Decoding and enhancing remote control systems

    The LS7311 is a versatile integrated circuit that holds a significant role in the realm of remote control systems and electronics. Developed by LSI Computer Systems, Inc., this chip is renowned for its ability to decode and process infrared (IR) signals, making it an essential component in a wide range of consumer electronic devices.

    At its core, the LS7311 functions as a decoder, receiving IR signals transmitted from remote controls and then converting them into the corresponding binary or hexadecimal codes. These codes are pivotal in instructing the target device to perform various functions. The chip is exceptionally proficient in handling the NEC IR protocol, a commonly utilized standard in the consumer electronics industry. The LS7311 comprises several critical components, including an IR receiver module responsible for capturing IR signals, a demodulator that extracts the signal from the carrier frequency, a data slicer that conditions the signal, and a decoder that transforms the signal into digital output.

    One of the standout features of the LS7311 is its robust noise-filtering capabilities. This capability ensures that the IC can reliably receive and decode signals even in the presence of interference, which is crucial for the seamless operation of remote control devices. The chip is engineered to be highly compatible with various remote control devices, offering manufacturers a versatile solution that can be seamlessly integrated into their products.

    Furthermore, the LS7311 is appreciated for its compact form factor and low power consumption. Its small size and energy efficiency make it a favored choice for designers looking to incorporate remote control functionality into their electronic devices without compromising on performance. The LS7311 plays a pivotal role in enhancing the overall user experience with electronic devices by enabling responsive and user-friendly remote control systems. In conclusion, the LS7311 is a valuable asset for electronics designers, offering consistent and reliable performance while accommodating various remote control standards, and contributing to the user-friendliness of modern electronic devices.

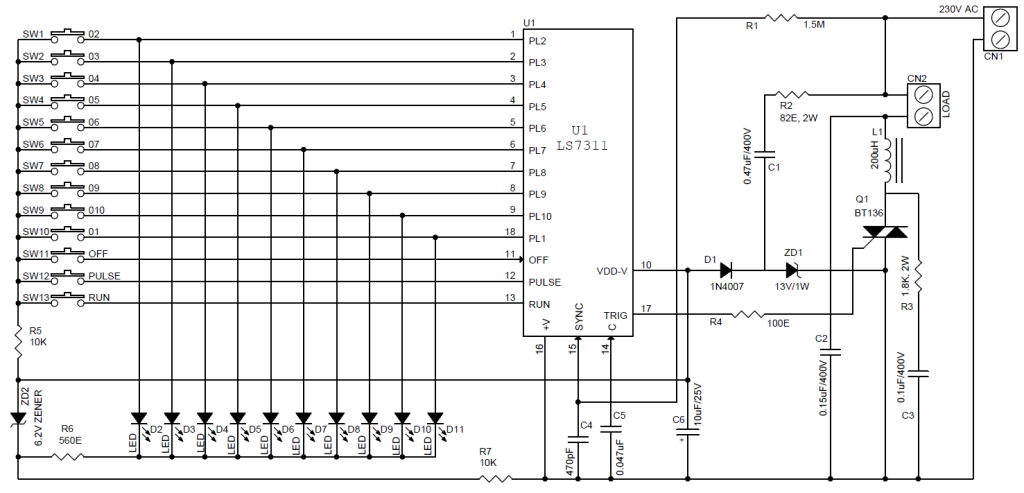

    Schematic

    AC-MOTOR-CONTROLLER-USING-LS7311-schema

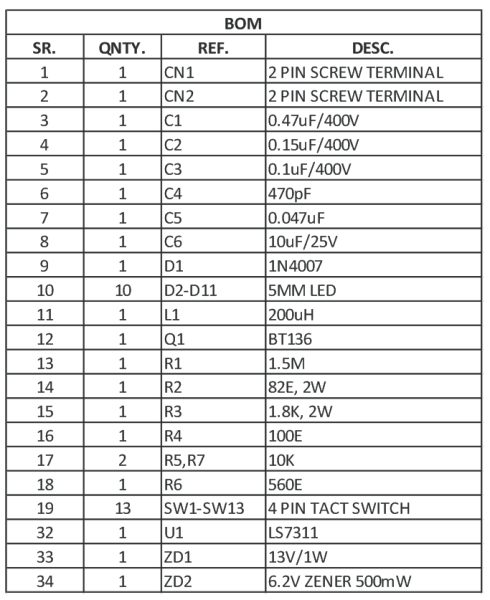

    Parts list

    list

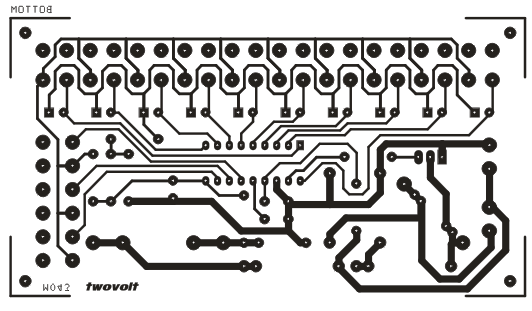

    PCB

    pcb

    pcb1

    Source : electronics-lab.com (CC BY-SA 4.0)
