Operation of a Transformer (with Diagram)

A transformer operates on the principle of electromagnetic induction within wound conductors. When a conductor with a current passing through it is placed in proximity to another wound conductor, the magnetic field generated by the first conductor permeates the second one, inducing a current within it. The number of turns in the winding determines the disparity between the two currents, subsequently establishing the voltage ratio between the terminals of the two inductors. Essentially, a transformer, as its name suggests, transforms one voltage into another.

transformer

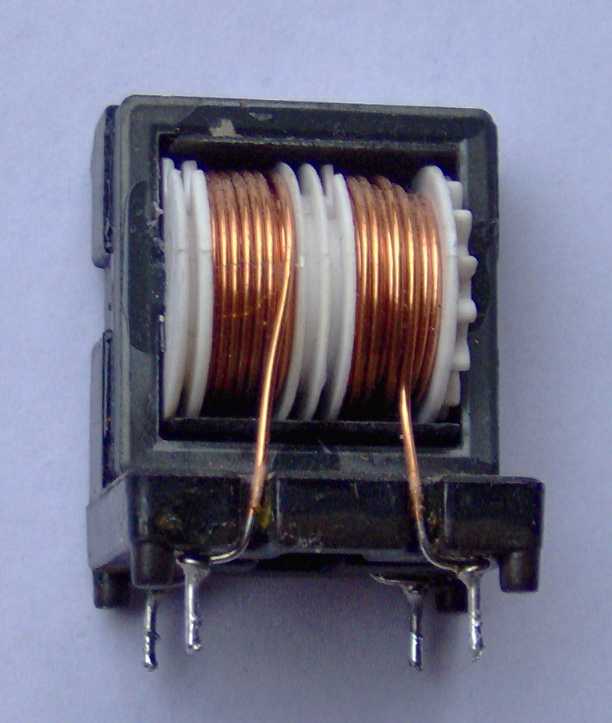

The operation of a transformer is based on magnetic flux. Image Wikipedia.org

Consider the illustration of a transformer with a primary winding of 20 turns and a secondary winding of 10 turns. Applying a 10 V voltage to the primary winding results in a transformed voltage of 5 V across the secondary winding. This showcases the fundamental principle of voltage transformation in a transformer.

electrical diagram Transformer
electrical diagram Transformer

Beyond voltage transformation, transformers exhibit another crucial property—they can act as impedance adapters. In the context of amplifier chains, it is essential that when connecting two devices, the output impedance of the first and the input impedance of the second adhere to a specific ratio for optimal performance. When the need arises to alter impedance values while keeping other electrical parameters constant, a transformer can be employed, or one can adjust the turns ratio between the primary and secondary windings.

Understanding the impedance adaptation capability of transformers is pivotal in ensuring seamless connectivity and signal flow between electronic devices. This becomes particularly pertinent in the design and optimization of amplifier chains, where maintaining the right impedance relationships is crucial for preserving signal integrity and achieving optimal performance.

In conclusion, transformers play a multifaceted role in electrical systems. Their ability to transform voltages and act as impedance adapters makes them indispensable in various applications, from power distribution to signal processing in electronics. A deep understanding of the principles governing transformers provides a foundation for leveraging their capabilities in designing efficient and effective electronic systems.

Transformer voltage calculation formula: Understanding the relationship between turns and voltage

The formula to calculate the voltage in a transformer depends on the relationship between the number of turns in the primary winding (N1) and the number of turns in the secondary winding (N2), along with the applied voltage in the primary winding (V1). This relationship is governed by the law of conservation of energy, also known as the transformer law. The formula is as follows:
V1/V2 = N1/N2

Where:

V1 : is the voltage in the primary winding,
V2 : is the voltage in the secondary winding,
N1 : is the number of turns in the primary winding,
N2 : is the number of turns in the secondary winding.

This formula expresses the voltage ratio between the primary and secondary windings and is valid under ideal conditions without considering potential losses.

Image source : Wikipedia.org
