Efficient control: Unveiling the power of the unipolar 4-Phase stepper motor controller


Stepper motors play a pivotal role in various automation and control systems, offering precise and controlled motion. The Unipolar 4-Phase Stepper Motor Controller project presents an efficient solution for controlling stepper motors or individual solenoids. This article explores the design, features, and specifications of this controller, shedding light on its applications and functionality.

Overview of the project

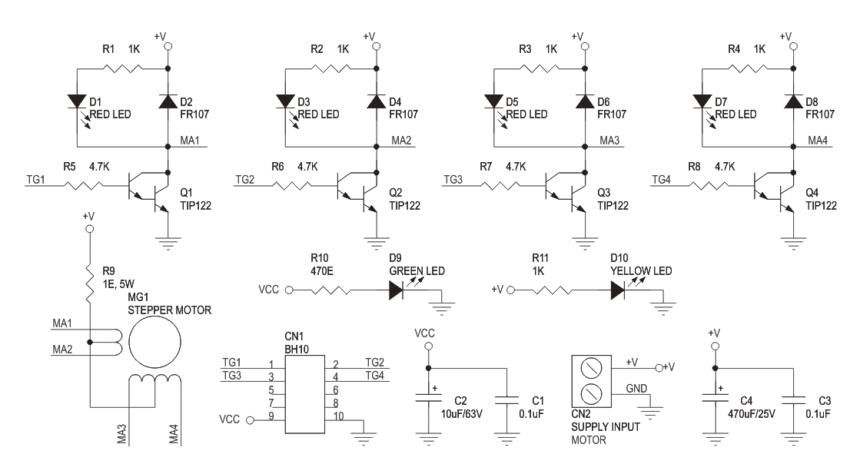

The Unipolar 4-Phase Stepper Motor Controller Board is designed to facilitate the control of a stepper motor or four individual solenoids. This circuit employs transistors as current amplifiers and diodes to safeguard against damaging back electromotive force (EMF). Darlington transistors are utilized to provide a high current capacity to unipolar stepper motors, ensuring reliable performance.

Key features and specifications

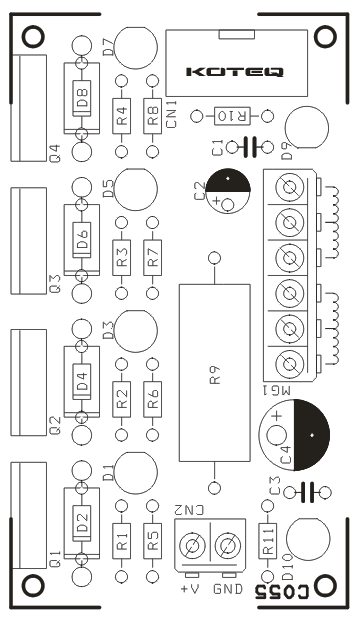

  • Box Header (IDC) connector for easy interfacing.
  • Separate LED indicators for each phase, enabling clear monitoring.
  • Screw terminal connector for convenient connection of output load and power supply input.
  • Power-On LED indicator for status indication.
  • Four mounting holes (3.2 mm each) for secure installation.

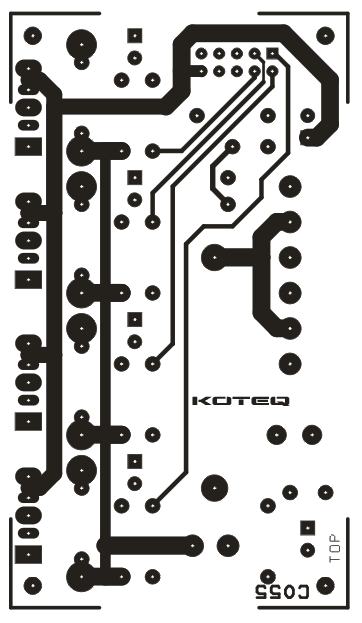

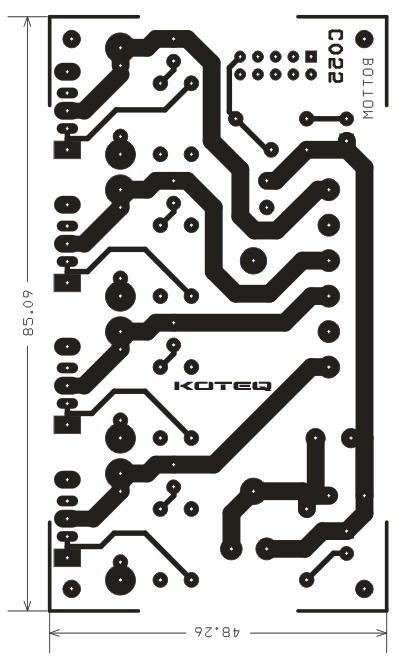

  • PCB dimensions: 86 mm x 49 mm.

Functional description

The operation of the Unipolar 4-Phase Stepper Motor Controller involves providing a sequence of pulses using a microcontroller or a descriptive circuit to drive the unipolar motor. By controlling the current through the onboard high-watt resistor, users can adjust the value of the resistor according to their specific load current requirements, ensuring optimal performance.


This versatile controller finds applications across various domains, including:

  • Automation systems: Used to precisely control the movement of robotic arms, conveyor belts, and other automated mechanisms.
  • 3D Printing: Enables precise positioning of the print head and control of the printing process.
  • CNC Machines: Facilitates accurate control of the tool head movement in CNC milling machines, lathes, and routers.
  • Industrial control systems: Employed in machinery control, packaging systems, and automated assembly lines.
  • DIY Projects: Ideal for hobbyists and enthusiasts creating custom automation projects, robotic prototypes, and motion-controlled devices.

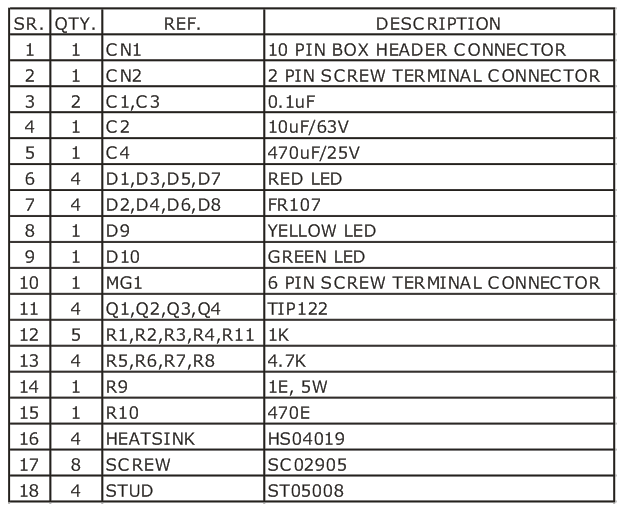

Part list




In conclusion, the Unipolar 4-Phase Stepper Motor Controller project offers a comprehensive solution for controlling stepper motors and solenoids with precision and ease. Its robust design, coupled with intuitive features and versatile applications, makes it a valuable asset in various industries and DIY projects. Whether used in industrial automation or hobbyist endeavors, this controller provides reliable performance and precise motion control capabilities, enhancing the efficiency and functionality of diverse systems and applications.

Source : (CC BY-SA 4.0)
